Scoreflex
Coronary Dilatation Catheter
Focused Force Angioplasty for Controlled Lesion Preparation
Focused Force Angioplasty for Safe and Controlled Dilatation
Scoreflex is a focused force dilatation balloon with a dual-wire system which creates a focal stress pattern to facilitate safe and controlled plaque modification at lower resolution pressure.
1) Advance a standard guidewire across the target lesion.
2) Advance Scoreflex NC balloon over the guidewire and cross the target lesion.
3) Inflate the Scoreflex NC balloon in a stepwise fashion.
4) Withdraw the deflated Scoreflex NC balloon once the desired result is achieved.

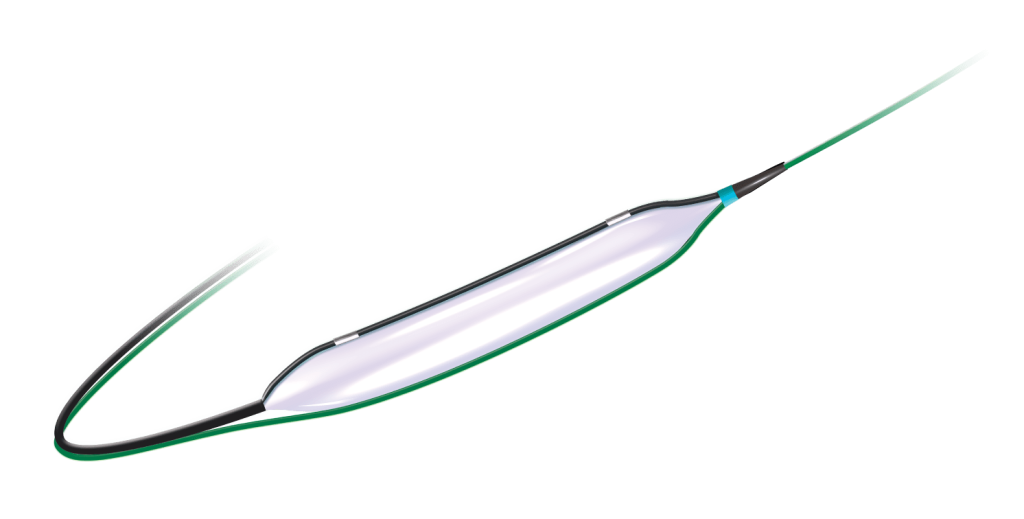

Scoreflex Construction
The (conventional) guidewire exits proximal to the tip and acts as the second scoring element
Catheter for excellent deliverability
Continuous hub-to-tip metallic construction for enhanced pushability,
with a combination of hydrophilic and hydrophobic coatings to minimize friction.

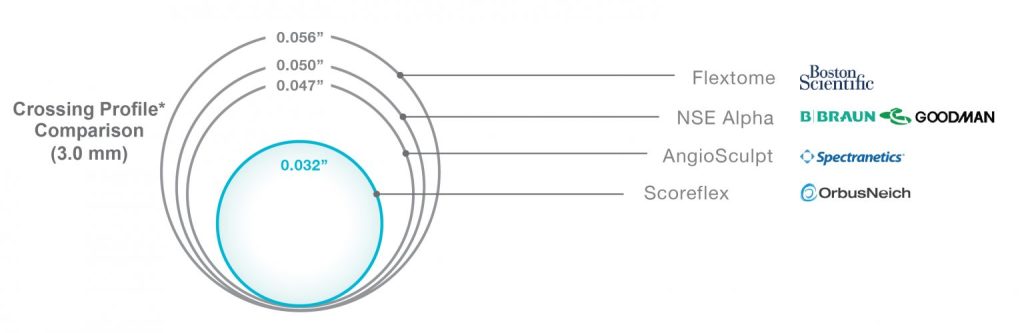

Crossing profile
Low Dilatation Pressure, Big Dilatation Effect
Scoreflex is a non-compliant focused force dilatation balloon that comes with a dual wire system which enables safe and effective plaque modification.

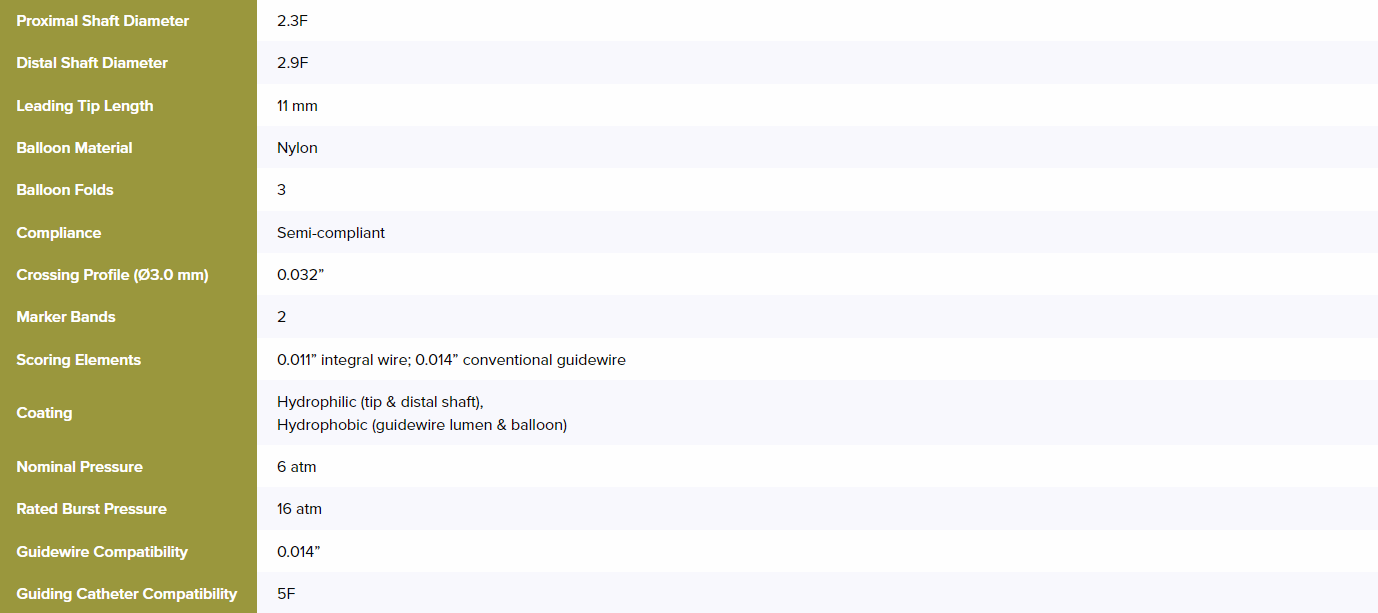

Technical Specifications

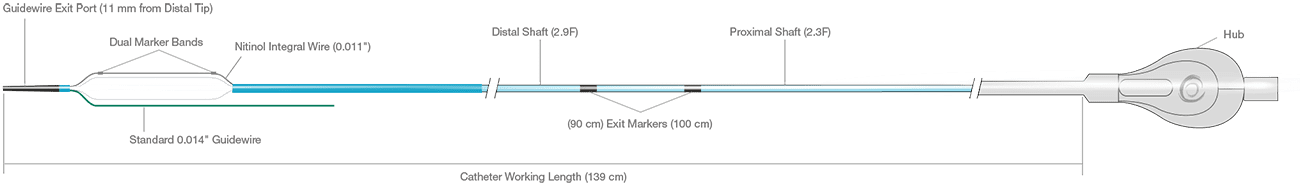

Schematic

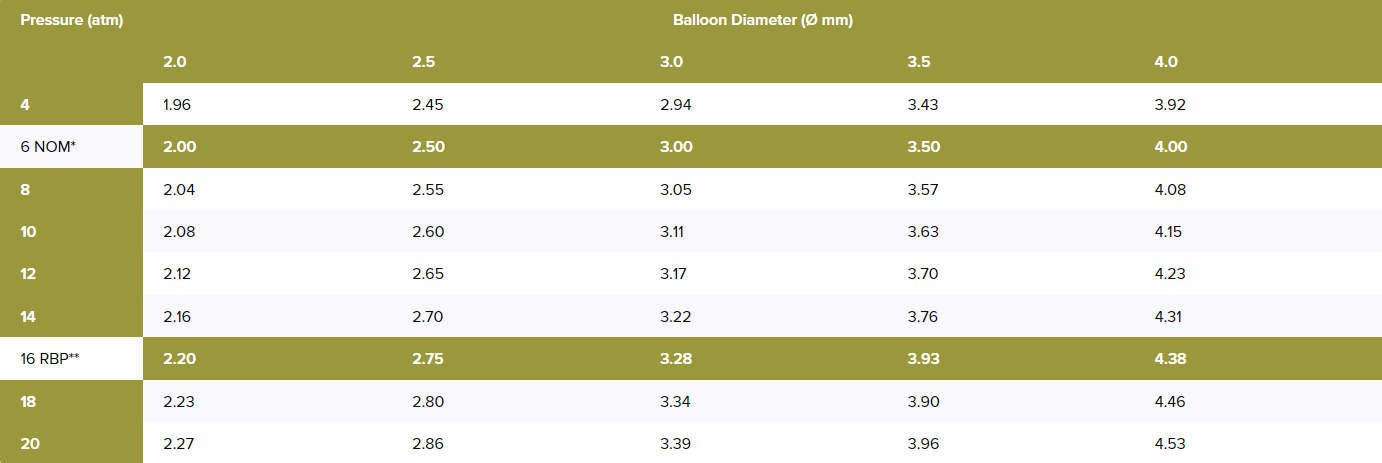

Compliance Chart

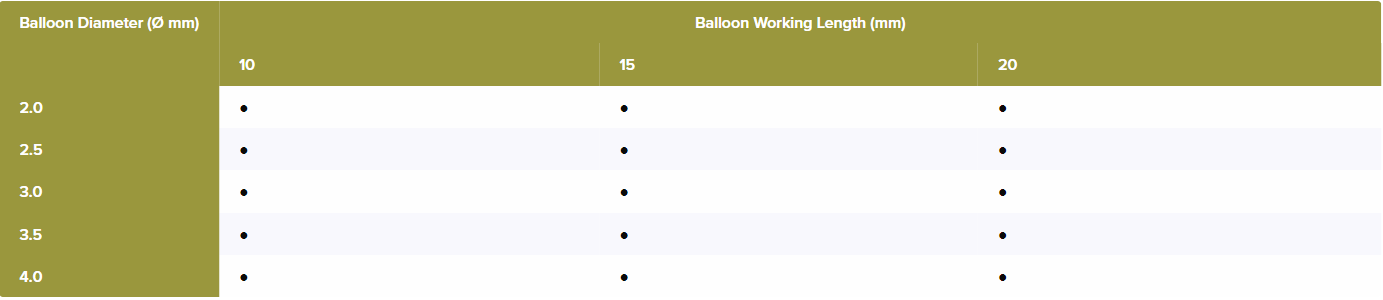

Available Configurations
Product Downloads
G-70-0515 Rev02 Scoreflex Brochure (EU)
