Sapphire NC24
Coronary Dilatation Catheter
Optimal combination of robustness, controlled compliance, and re-crossability

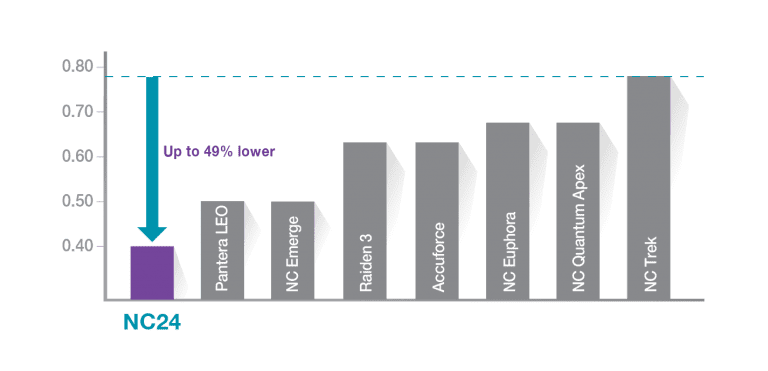

True Controlled Balloon Compliance
Lowest % Circumferential Growth* (Nom to RBP)

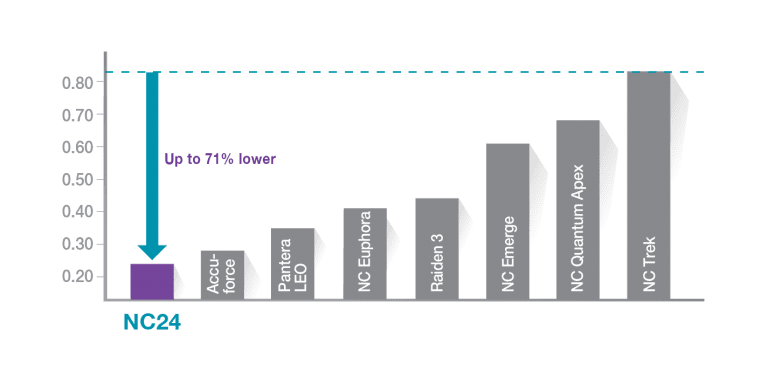

True Controlled Balloon Compliance
Lowest % Longitudinal Growth* (Nom to RBP)

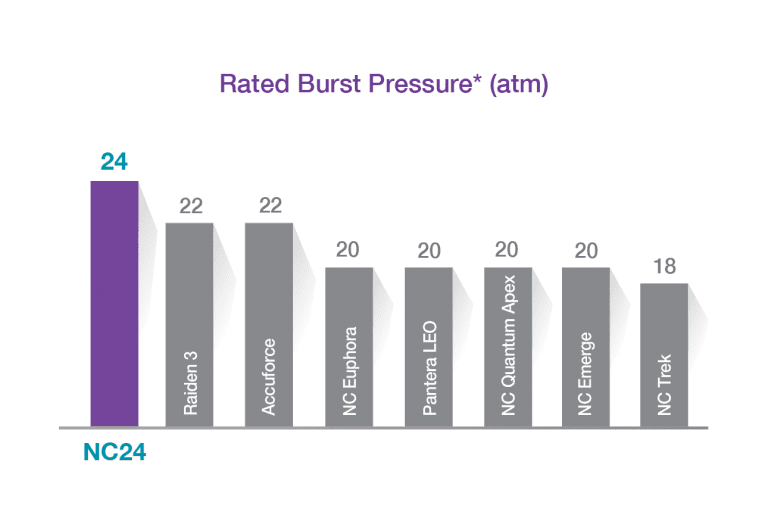

High Pressure Tolerance
High pressure tolerance of 24 atm RBP up to 3.5 mm diameter without compromising crossability

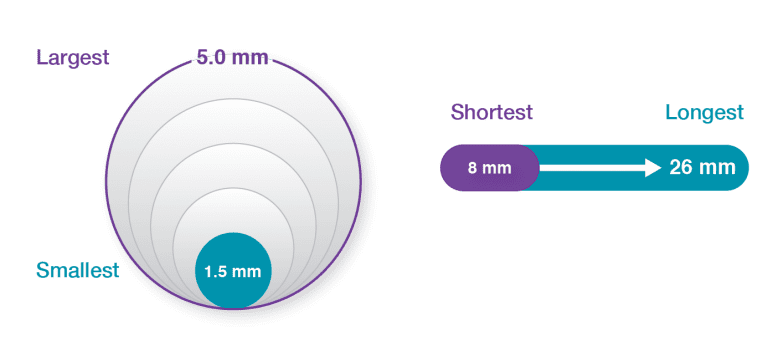

Diameter range from 1.5 to 5.0 mm with lengths up to 26 mm for broadened range of treatment

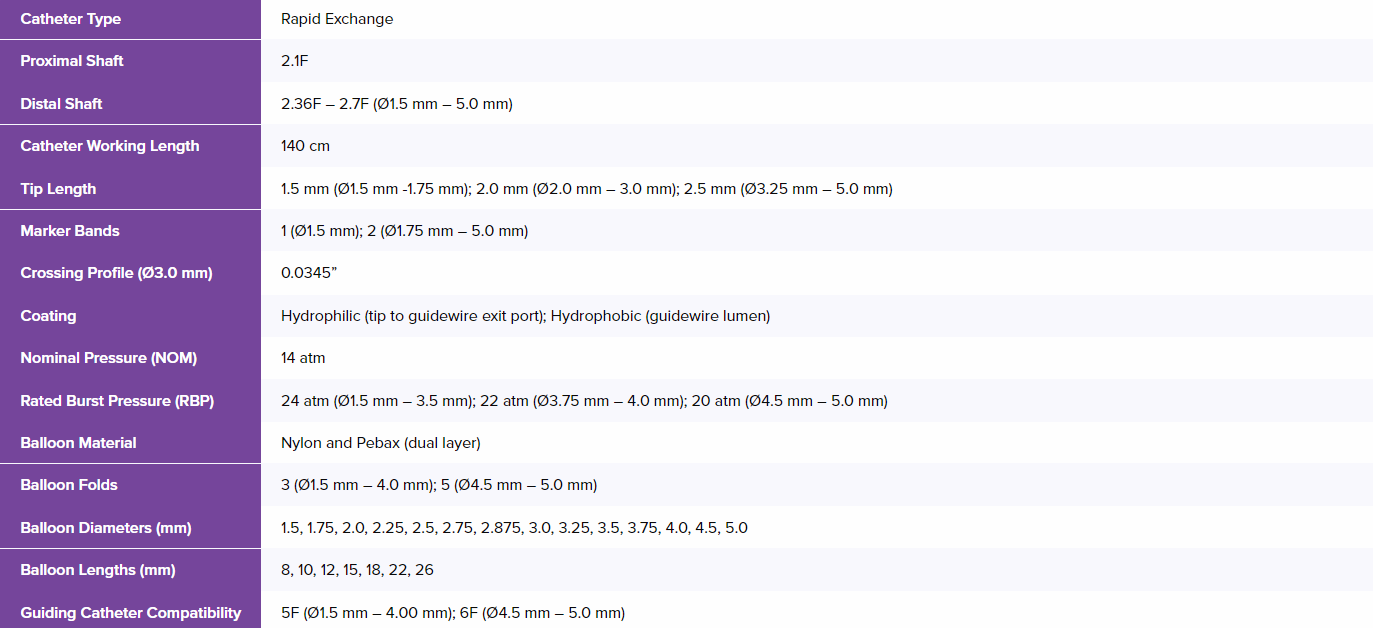

Technical Specifications

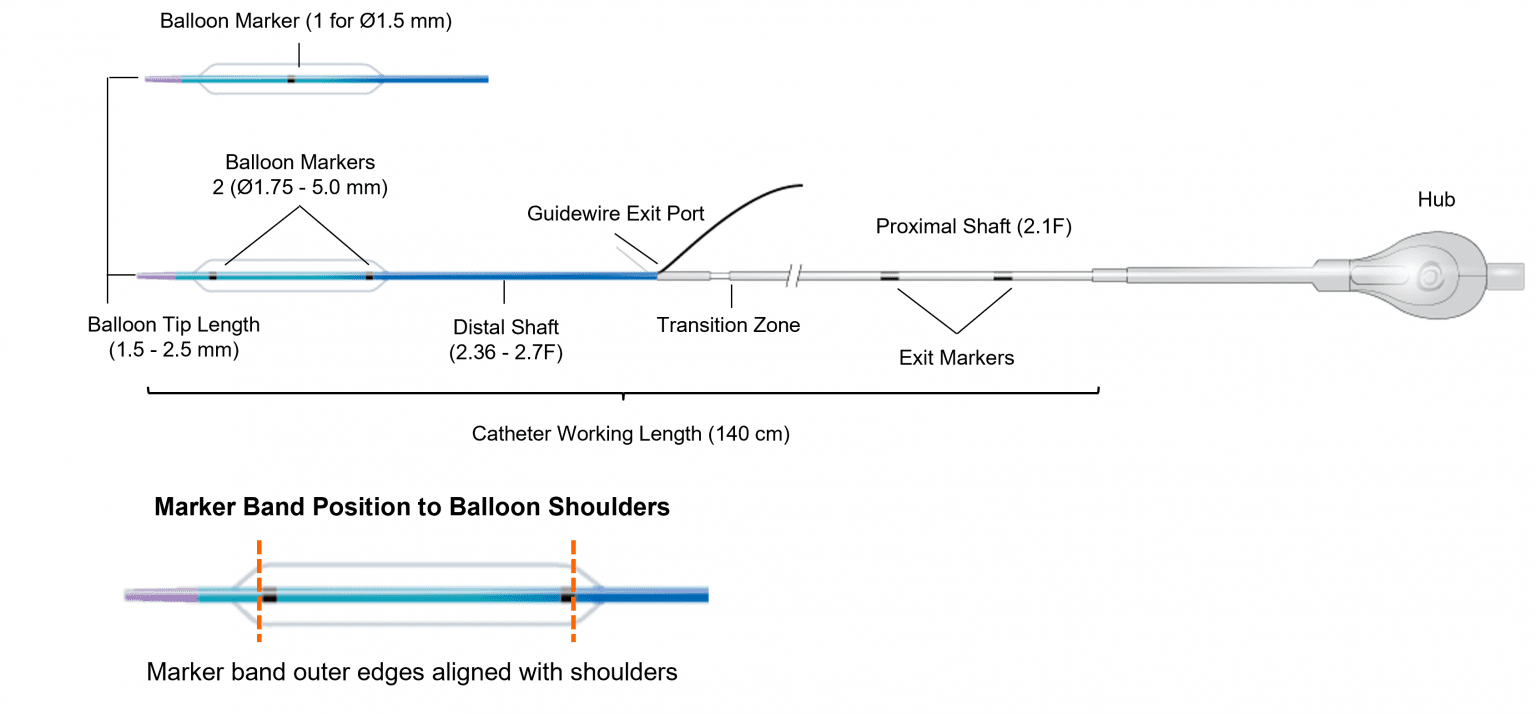

Schematic

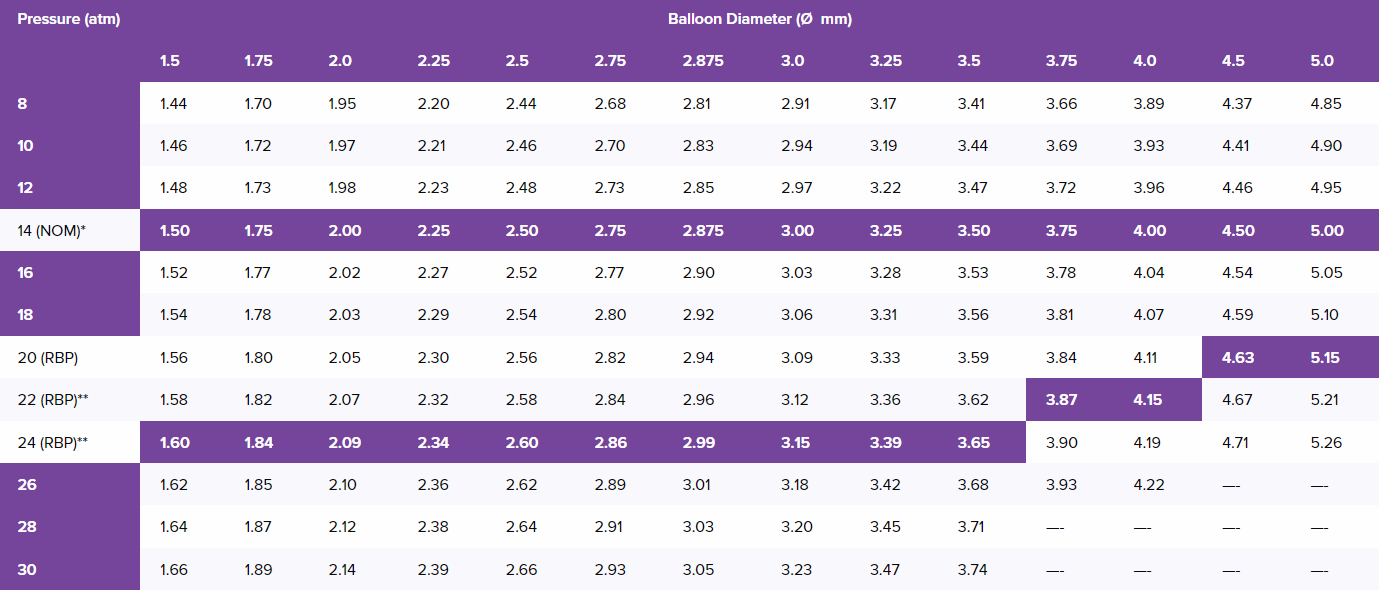

Compliance Chart

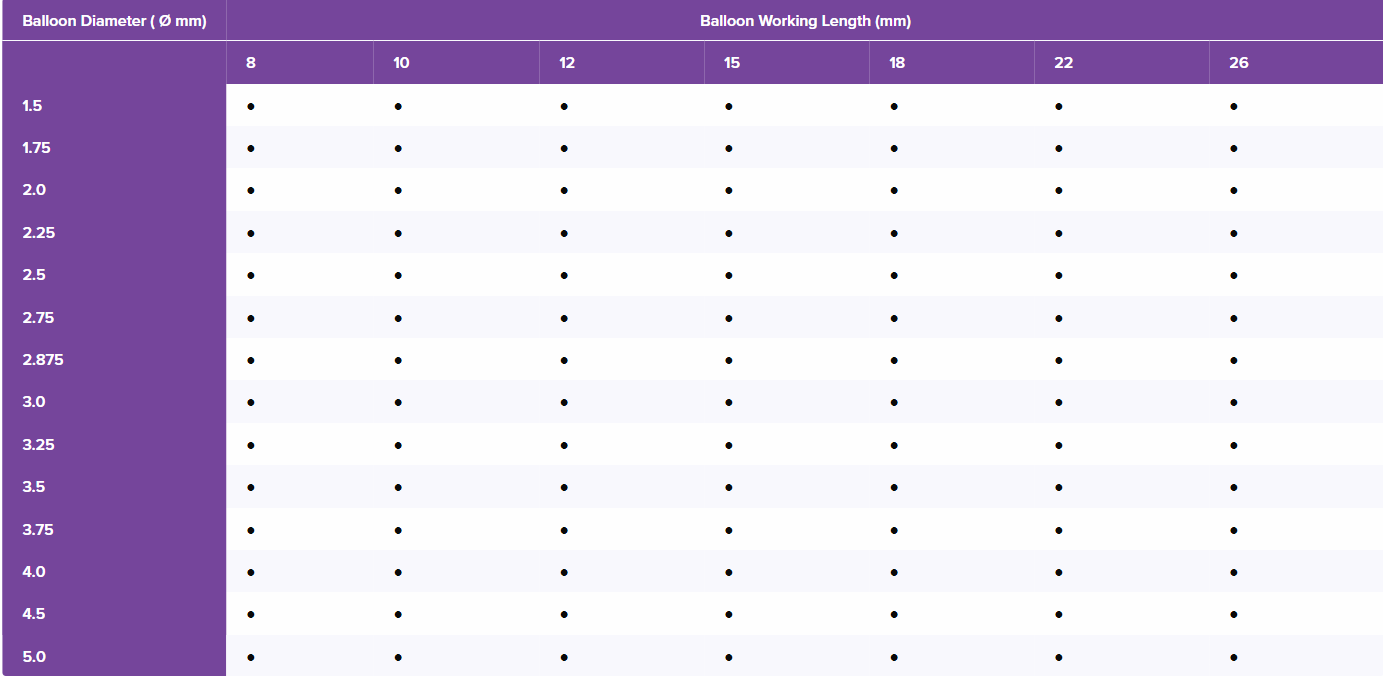

Available Configurations
Product Downloads
G-70-1063 Rev05 (Non-EU) Sapphire NC24 Brochure
G-70-1069 Rev06 (EU) Sapphire NC24 Brochure
