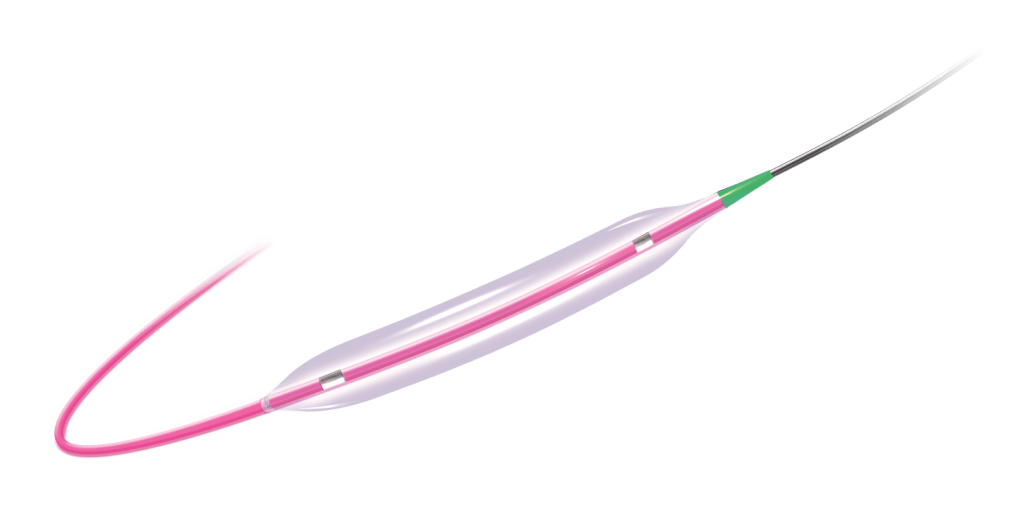

Sapphire II NC
Coronary Dilatation Catheter
True controlled compliance
and ultimate crossability for a Wide Spectrum of Vessels

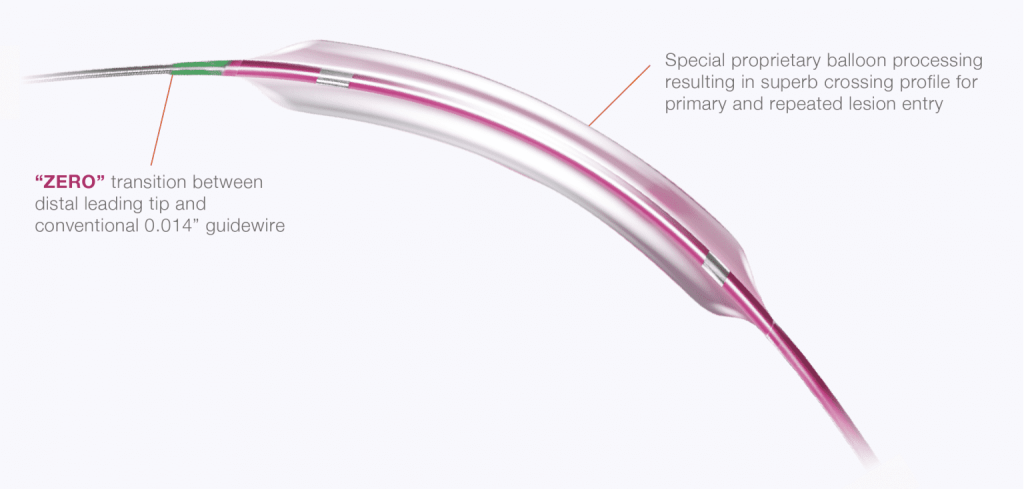

Enhanced distal Z-Tip
with advanced laser welding technology for “ZERO” transition with conventional steerable guidewires
Crossing Profile (Ø3.0 mm)

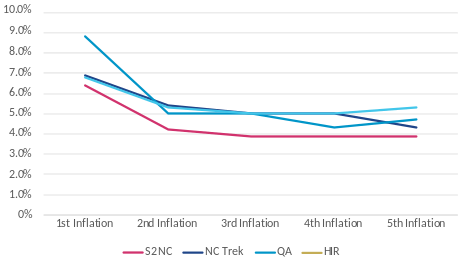

Minimal Balloon Growth and Sizing Accuracy
Broad Range of Sizes

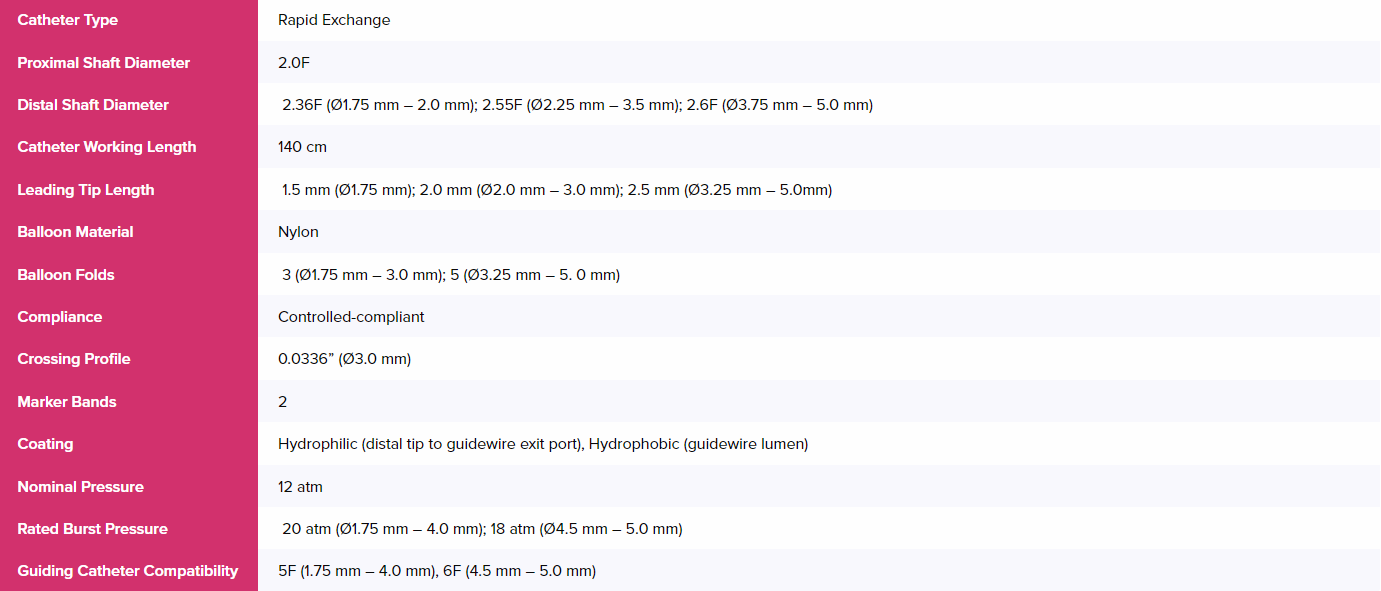

Technical Specifications
Schematic

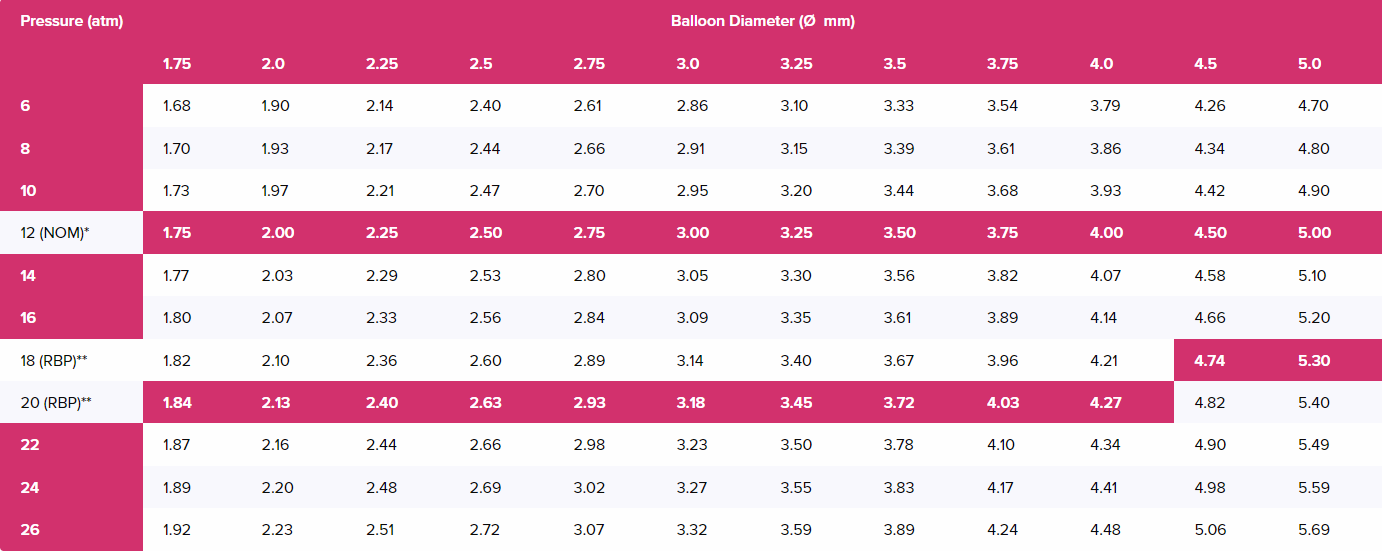

Compliance Chart

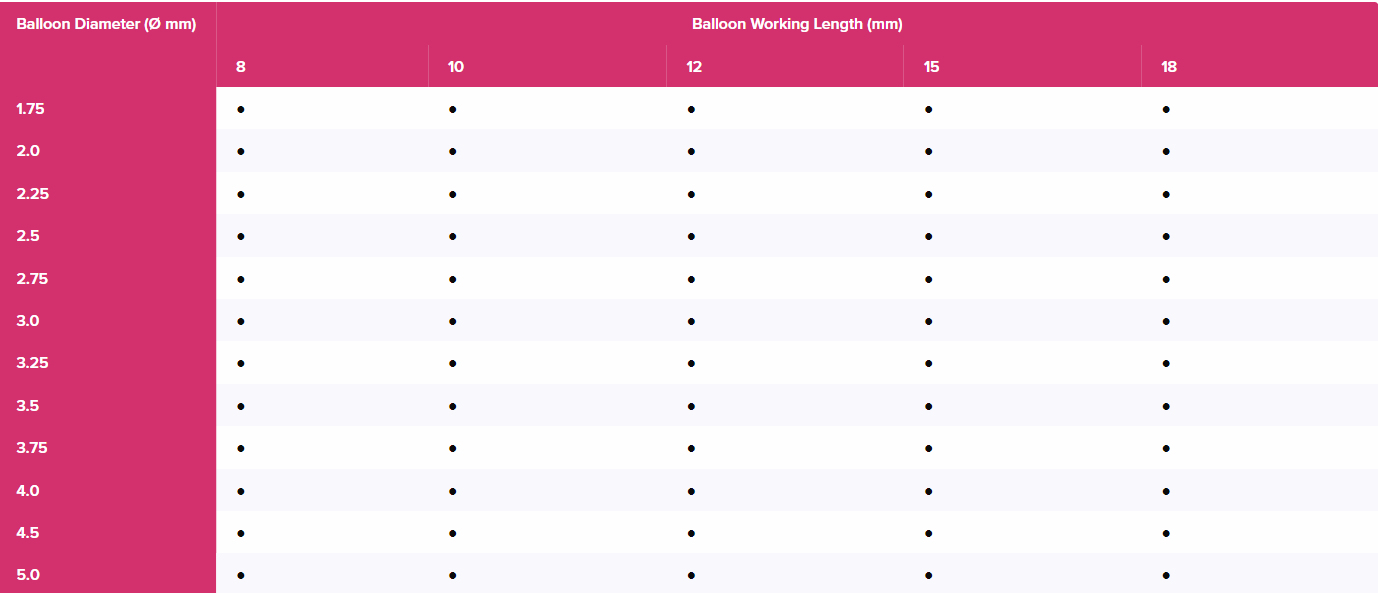

Available Configurations
Product Downloads
G-70-0201 Rev04- Sapphire II NC - Brochure (Non-EU)
G-70-0201 Rev04- Sapphire II NC - Brochure (Non-EU)
